Black EVA Film(SV-15297B)

High reflective black EVA film has a structure of white-black or black -white-black structure, it included a black infrared high reflection film layer in contact with the cell and a white high reflection layer close to the other side of the black film layer.

Product consultation:

Product Description

Product Introduction

High reflective black EVA film has a structure of white-black or black -white-black structure, it included a black infrared high reflection film layer in contact with the cell and a white high reflection layer close to the other side of the black film layer.



Product Features

1.It is suitable for black photovoltaic module with good aesthetics.It can improve the integration of modules and buildings;
2.Compared with the conventional black module, the film has high reflectivity in infrared band,which can improve     the power of black module;
3.After aging test, the infrared reflectance attenuation and the chromaticity change of the film is small;
4.The film is easy for processing and its quality is stable during lamination.In addition, there is no overflow after lamination.

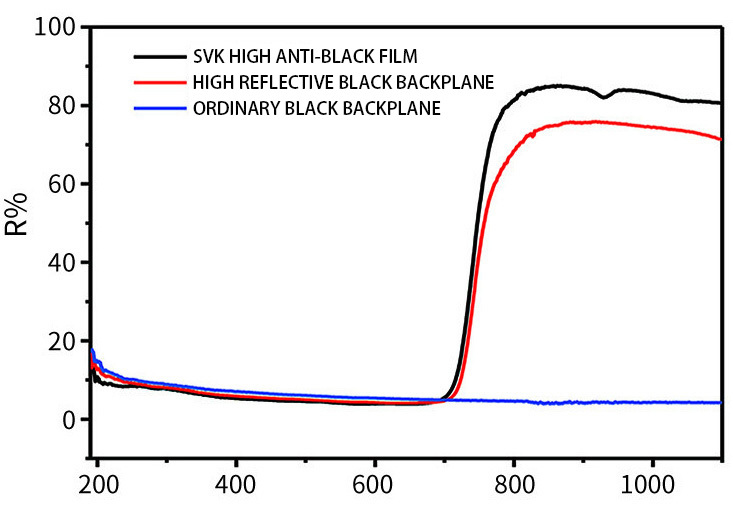

Reflection Properties



Type Start from End with Divisor Area Result
SV-15296P 280 380 100 87794.12 87.794
380 1100 720 66473.28 92.324
SV-15297B 760 1100 340 27763.14 81.656



Efficiency Comparison between Hi-Reflectivity backsheet and Hi-Reflectivity black EVA
